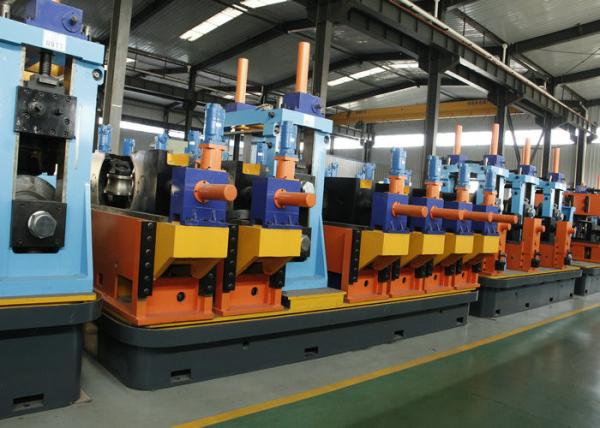

Automatic ERW Tube Mill For Pipe Making Machine Max 50m/Min Speed

  • 1
  • 2

Brand Name : Tengtian

Model Number : HG60

Certification : CE, ISO9001, BV

Place of Origin : HEBEI,CHINA

MOQ : 1 set

Price : $100000 to $1 million

Payment Terms : L/C, T/T, Western Union

Supply Ability : 50 set per year

Delivery Time : 2.5 months

Packaging Details : Export waterproof and Seaworthy packing.

product name : Automatic ERW Tube Mill For Pipe Making Machine Max 50m/Min Speed

material : carbon steel,stainless steel,low alloy steel

Pipe Diameter : 21 - 63mm

product speed : Max 50m/min

Max.Thickness for Square Pipe : 0.8-3.0mm

certification : CE ISO

worm gearing : Max.80m/min

keywords : Pipe Making Machine

Contact Now

ERW Tube Mill Other Model

Model Diameter Range Pipe Thickness Line Speed(m/min)
HG20 8-25.4MM 0.3-1.2MM 120
HG32 10-32MM 1.4-1.5MM 120
HG50 16-76MM 0.7-2.5MM 30-120
HG76 25-76MM 1-4MM 30-100
HG89 32-89MM 1-4.5MM 30-80
HG114 45-114MM 1.5-5.0MM 30-60
HG165 60-165MM 3-7MM 30-50
HG219 114-219MM 4-8MM 20-40
HG273 114-273MM 4-10MM 15-30
HG325 165-325MM 4-10MM 10-30
HG426 165-426MM 4-12.7MM 8-25
HG508 219-508MM 4-16MM 8-20

Technology Procedures

Uncoiler→Shear&end welder→Honrizontal accumulator→Leveling→Forming→HF welding→Scraper→Cooling→Sizing→Straightening→Flying saw cut off→Run out table

MainTechnical Specifications

Item Patameter
Material Hot/cold rolled carbon steel or Galvanized steel coil
Finished porducts Requirement Round pipe 25.4-63.5mm
Square pipe 20*20-50*50mm
Rectangle pipe 15*25-60*40mm
Thicness 1-1.5mm
Place requirement Place type Separate layout
Loyout type Input,Side output(look from main console,decided by customer)
Production speed 0-80m/min
Cutting motor 15Kw
Cutting Type Hot friction saw
Cutting tolerance ±3mm
Tracking motor 11Kw
Pneumatic system 0.4-0.7Mpa

Our Services

Installation (optional by the buyer)

a.After the machine arrives at the destination, the seller will send technician to the buyer’s factory to install the machine if the buyer wants. The buyer needs provide some technicians to assist the installation work.

b.Installation period(The buyer should have been prepared for the steel sheet, foundation position the machine before seller’s technicians departure): 5 days

c.The buyer pays the installation charges to the seller’s appointed account before the technician departure: USD1,000 per set.

d.Training period: 2 days. (we can supply training on the operation spot if buyer needs)

e.The buyer pays the seller’s technician: Travel cost outside China (including round flight charges), accommodation and foods (at least three-star hotel with air condition), solve the language problem, provide transportation from living place to the work place, and insurance out of China, etc.

f.With in 3 months after arrival of the goods at the port of destination, if there is no installment requirement from the Buyers, the goods should be counted as up to standard. Inspection standard is based on the technical standard signed by both parties and our company standard.
