Gi Profile Shape Rectangular 20*20 Roller Automatic Tube Mill
1. Introduction
Gi Profile Shape Rectangular 20*20 Roller Automatic Tube Mill this type machine adopts one set of combined mould, producing the different specifications of the tube, only need to adjust,no need to change,the roller savings rate at above 90%,thus reducing the cost of the roller and improve the efficiency,use the motor automatic adjustment,thus decreasing the number of workers,reduce the labor costs,decreased the workers labor intensity, improved the workers working environment
In a very short period of time to finish the adjustment of the roller, extreme reduce the roller change time when replace the products, thus improve the efficiency and reduce the productive cost.The equipment operation is simple,just need to know the size and the wall thickness of the tubes in the production,then input it to the interface,it will make adjustment automatically, thus lower levels of debugging personnel's technical requirements
2. Product parameter specifications
| Standard | SPHC,Q235,Q345 |
| Material | Low carbon steel and low alloy constructional steel |
| Mechanical properties | σb≤520Mpa,σs≤365MPa |
| Pipe size | 20x20-80x80mm |
| Pipe thickness | 1.0-4.0mm |
| pipe length | 4-12meter |
| Pipe-cutting Precision | 0-6mm |
| Work shop | 100x8m, H＞6m(crane to ground) |
| Power | Approx.500KW 380V/50Hz/3phases |
3. Quality and Service Warranty
Gi Profile Shape Rectangular 20*20 Roller Automatic Tube Mill After the machine arrives at the buyer,technical service person will go to buyer factory provide guidance on operation,debugging and maintenance the machine,responsible for technical training for equipment operation and maintenance personnel of the buyer.
whole line warranty one year
Product Tags:
|
|

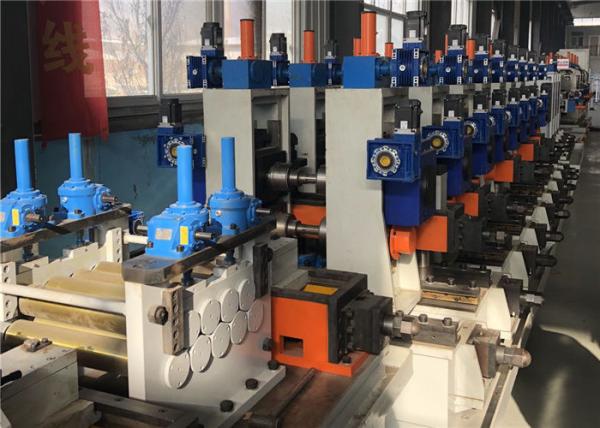

Gi Profile Shape Rectangular 20*20 Roller Automatic Tube Mill Images
|
