Precision Tube Mill 100x100 Square Precision Tube Mill Making Machine

Name: Precision Tube Mill 100x100 Square Precision Tube Mill Making Machine
Brand: Tengtian
Price: 100000 USD

Precision Tube Mill 100x100 Square Precision Tube Mill Making Machine Manufactures

Brand Name : Tengtian

Model Number : 100x100

Certification : CE,ISO9001,BV

Place of Origin : Hebei

MOQ : 1 Set

Price : $100000 to $1 million

Payment Terms : L/C, T/T, Western Union

Supply Ability : 30 Sets

Delivery Time : 90 work days/Year

Packaging Details : Export waterproof and Seaworthy packing.

Production Name : Precision Tube Mill 100x100 Square Precision Tube Mill Making Machine

Material : HRC,CRC,Galvanised Steel

tube size : 30x30-100x100 mm

tube thickness : 1.0-4.0mm

Welding Type : H.F solid welder

Pipe shape : square,rectangular,LTZ

Roller materoal : Cr12/SKD11

Key words : Precision Tube Mill

Contact Now

100x100 Square Tube Making Machine Precision Tube Mill

Product Description:

100x100 high frequency straight welded pipe mill line is used to manufacture welded steel pipe.After we absorbed advanced pipe making technology from both abroad and domestic, can product different size,shape tube and ensure the tube precision.the square tube size:30x30-100x100mm, tube thickness: 1.0-4.0mm,also can product LTZ special shape tubes.

Main Parameters and Specifications:

Material Specifications

Conforming to the YB189-64 standard
steel material: Q235/Q345
Mechanical properties:σb≤380Mpa,σs≤275MPa
strip width:120-400MM
strip thickness:1.0-4.0MM
I.D of Coils:Φ508mm
O.D of Coils:φ1800mm
Coil Weight:4TON

Quality and Service Warranty

After the machine arrives at the buyer,technical service person will go to buyer factory provide guidance on operation,debugging and maintenance the machine,responsible for technical training for equipment operation and maintenance personnel of the buyer.

whole line warranty one year

Working Process:

strip steel to coil→uncoiler →shear welder→storage material unit →formed,welding,cooling,accurate pipe Dia. size →accurate pipe length size,cutting→inspection →package

Tube Mill Other Model

Model	Diameter Range	Pipe Thickness	Line Speed(m/min)
HG20	8-25.4MM	0.3-1.2MM	120
HG32	10-32MM	1.4-1.5MM	120
HG50	16-76MM	0.7-2.5MM	30-120
HG76	25-76MM	1-4MM	30-100
HG89	32-89MM	1-4.5MM	30-80
HG114	45-114MM	1.5-5.0MM	30-60
HG165	60-165MM	3-7MM	30-50
HG219	114-219MM	4-8MM	20-40
HG273	114-273MM	4-10MM	15-30
HG325	165-325MM	4-10MM	10-30
HG426	165-426MM	4-12.7MM	8-25
HG508	219-508MM	4-16MM	8-20

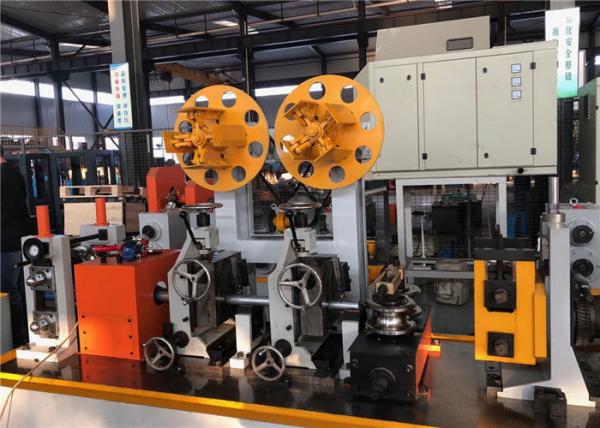

Precision Tube Mill 100x100 Square Precision Tube Mill Making Machine
