Low Alloy Steel 1.5mm Pipe Making Machine Customed

Name: Low Alloy Steel 15mm Pipe Making Machine Customed
Brand: TENGTIAN
Price: 100000 USD

Low Alloy Steel 1.5mm Pipe Making Machine Customed Manufactures

Brand Name : TENGTIAN

Model Number : 127

Certification : CE ISO9000 BV

Place of Origin : China

MOQ : 1 set

Payment Terms : L/C, D/A, D/P, T/T

Supply Ability : 5 set/year

Delivery Time : 100 wording days

Packaging Details : standard export package

Production Name : Low Alloy Steel 1.5mm Pipe Making Machine Professional Custom Pipe Mill

Feature : Professional Customed

Other pipe : round pipe and square pipe

Max size : 50 x 50 - 100 x 100 mm

Thickness : 1 . 5 - 4 . 0 mm

Length : 4 - 12 m

Warranty : one year

Key words : 50 - 100 Mm Welded Pipe Production Line

Price : $100000 to $1 million

Contact Now

Low Alloy Steel 1.5mm Pipe Making Machine Professional Customed Pipe Mill

1. Low Alloy Steel 1.5mm Pipe Making Machine Professional Customed Pipe Mill General Introduction

127 high frequency welded pipe mill line is used to manufacture welded steel pipe.After we absorbed advanced pipe making technology from both abroad and domestic, our innovative designed production line and each single unit of the production line is not only economical but also practical.

Square pipe size: 50 x 50 - 100 x 100 mm Pipe thickness: 1.5 - 4 . 0 mm

2. Low Alloy Steel 1.5mm Pipe Making Machine Main Parameters and Specifications

⑴ Material Specifications:

Material	low carbon steel galvanize and crabon steel tube
Mechanical properties	σ_b≤520Mpa,σ_s≤365MPa
strip width	200 - 400 mm
strip thickness	1 . 5 - 4 . 0 mm
I.D of Coils	Φ 508 - 610 mm
O.D of Coils	φ 2000 mm
Coil Weight	≤ 10T

⑵ Welded Pipe Specification

Square Pipe Diameter	Φ 50 ～ φ 100 mm
pipe thickness	1 . 5 - 4 . 0 mm
Finish pipe length	4 - 12 m
Cut length accuracy	± 3 mm
Forming speed	15 - 60 m/min

⑶ workshop require : 100 m X 6 m ,at least 5m high

Notice:You can modify it according to the actual length of the workshop

3. Quality and After-sale Service Warranty

Equipment arriving at the buyer, the technical services personnel at the scene debugging, maintenance, equipment commissioning, commissioning, operation and maintenance instruction, responsible for technical training for equipment operation and maintenance personnel of the buyer. Used in users abide by the rules, under normal operating equipment, since 12 months from the date of the arrival of the equipment, such as positively impact on the quality to use, parts damage lead to equipment can't normal work, factory will give the repair or replacement free of charge.

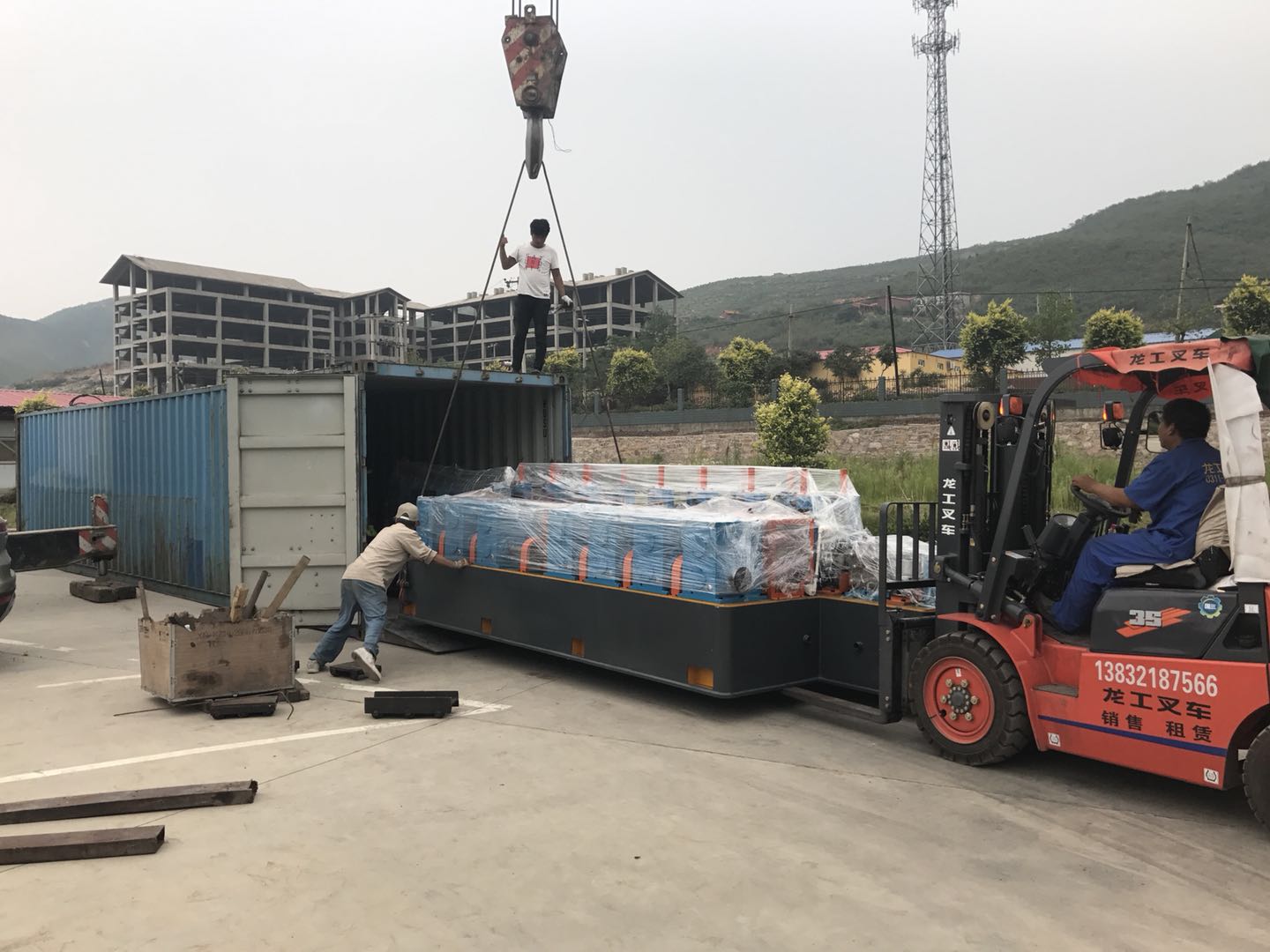

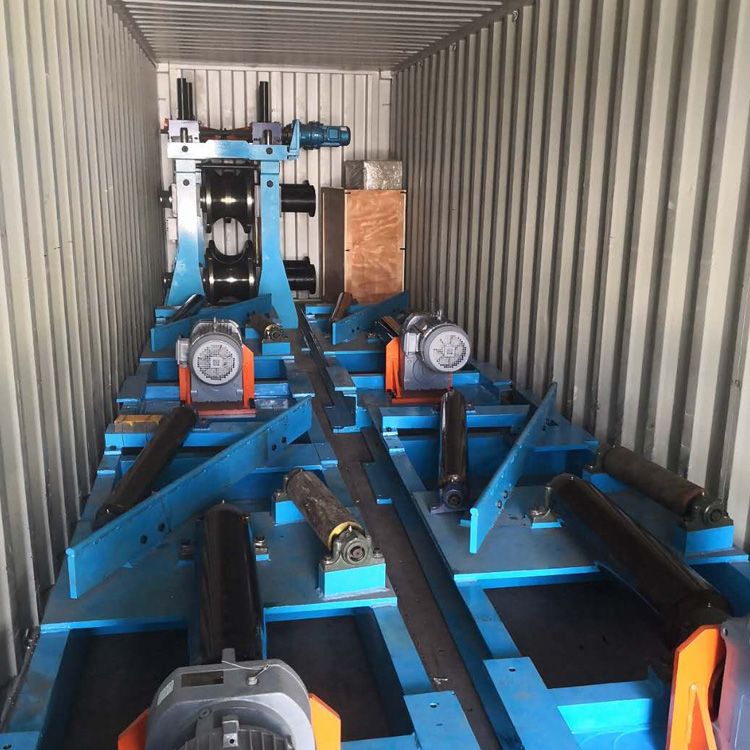

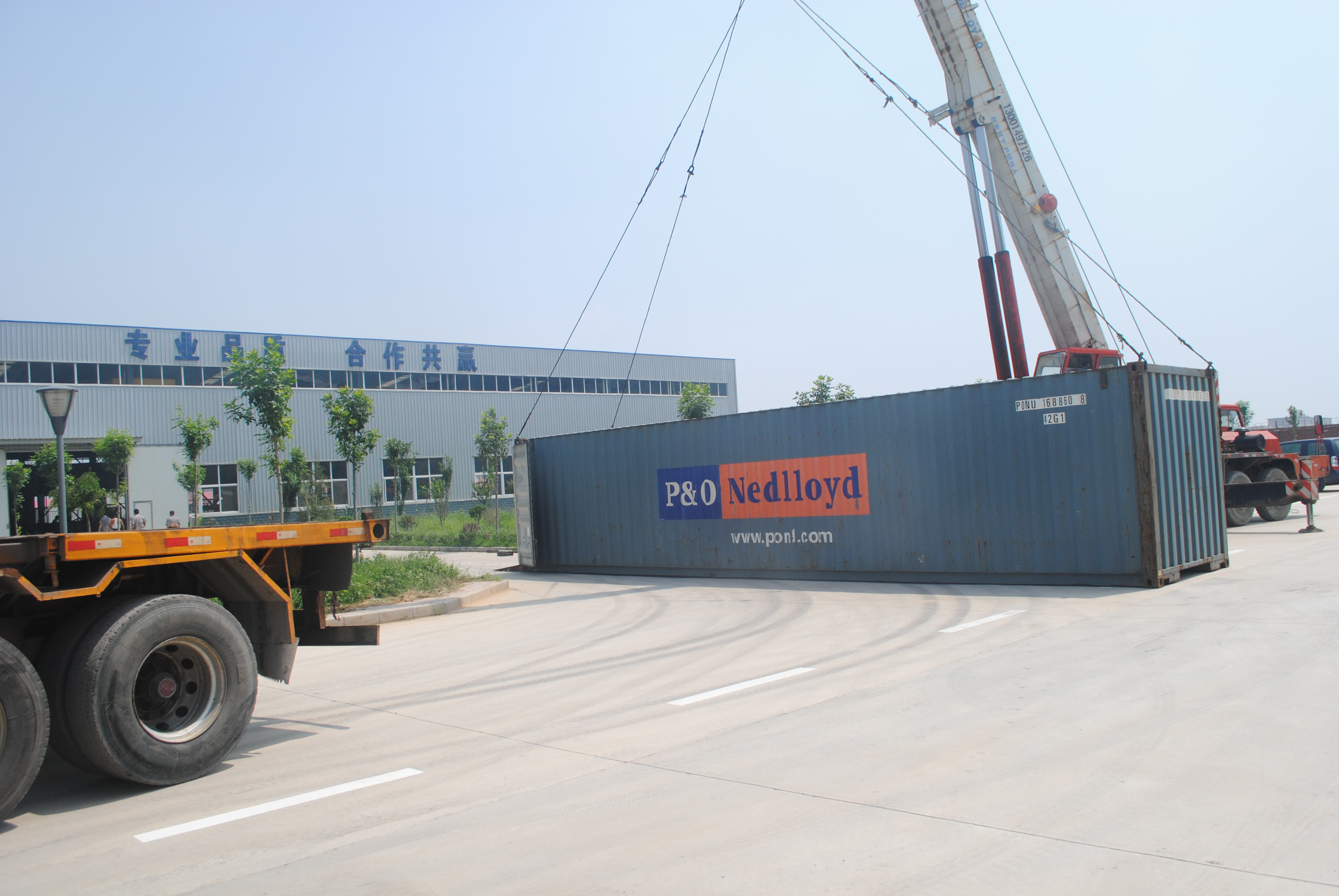

4. Shipping Pic

Low Alloy Steel 1.5mm Pipe Making Machine Customed
