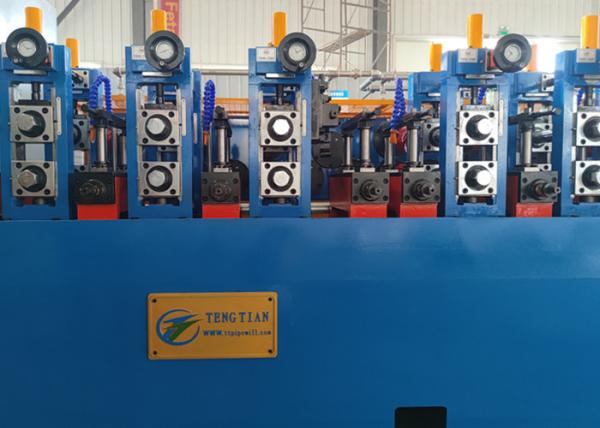

Galvanized Carbon Steel Round Welded Pipe Mill High Frequency

Name: Galvanized Carbon Steel Round Welded Pipe Mill High Frequency
Brand: Tengtian
Price: 100000 USD

Galvanized Carbon Steel Round Welded Pipe Mill High Frequency Manufactures

Brand Name : Tengtian

Model Number : HG50

Certification : CE,ISO9001,BV

Place of Origin : Hebei,CHINA

MOQ : 1 Set

Price : $100000 to $1 million

Payment Terms : L/C, T/T, Western Union

Supply Ability : 30 Sets

Delivery Time : 90 work days

Packaging Details : Export waterproof and Seaworthy packing.

Production Name : High Frequency Welded Pipe Mill Galvanized Carbon Steel Round Welded Pipe Mill High Frequency

Material : HRC,CRC,Galvanised Steel

tube size : 15-50 mm

tube thickness : 0.8-2.5mm

Welding Type : High frequency welder

Pipe shape : round,square

Roller materoal : Cr12/SKD11

Key words : high frequency welded pipe mill

Contact Now

Galvanized Carbon Steel Round Pipe High Frequency Welded Pipe Mill

Product Description:

Galvanized Carbon Steel Round Pipe High Frequency Welded Pipe Mill is used to manufacture round,square welded steel pipe.After we absorbed advanced pipe making technology from both abroad and domestic, can product different size,shape tube and ensure the tube precision.the round tube size:15-50mm, tube thickness: 0.8-2.5mm,also can product LTZ special shape tubes.

Main Parameters and Specifications:

Material Specifications

Conforming to the YB189-64 standard
steel material: Q235/Q345
Mechanical properties:σb≤380Mpa,σs≤275MPa
strip width:47-157MM
strip thickness:0.8-2.5MM
I.D of Coils:Φ508mm
O.D of Coils:φ2000mm
Coil Weight:3TON

Quality and Service Warranty

After the machine arrives at the buyer,technical service person will go to buyer factory provide guidance on operation,debugging and maintenance the machine,responsible for technical training for equipment operation and maintenance personnel of the buyer.

whole line warranty one year

Working Process:

strip steel to coil→uncoiler →shear welder→storage material unit →formed,welding,cooling,accurate pipe Dia. size →accurate pipe length size,cutting→inspection →package

Tube Mill Other Model

Model	Diameter Range	Pipe Thickness	Line Speed(m/min)
HG20	8-25.4MM	0.3-1.2MM	120
HG32	10-32MM	1.4-1.5MM	120
HG50	16-76MM	0.7-2.5MM	30-120
HG76	25-76MM	1-4MM	30-100
HG89	32-89MM	1-4.5MM	30-80
HG114	45-114MM	1.5-5.0MM	30-60
HG165	60-165MM	3-7MM	30-50
HG219	114-219MM	4-8MM	20-40
HG273	114-273MM	4-10MM	15-30
HG325	165-325MM	4-10MM	10-30
HG426	165-426MM	4-12.7MM	8-25
HG508	219-508MM	4-16MM	8-20
