HG 165 110MM-273MM Round Automatic Tube Mill Gas Pipe Forming Machine

Name: HG 165 110MM273MM Round Automatic Tube Mill Gas Pipe Forming Machine
Brand: Tengtian
Price: 100000 USD

HG 165 110MM-273MM Round Automatic Tube Mill Gas Pipe Forming Machine Manufactures

Brand Name : Tengtian

Model Number : HG165

Certification : CE,ISO9001,BV

Place of Origin : Hebei,CHINA

MOQ : 1 Set

Price : $100000 to $1 million

Payment Terms : L/C, T/T, Western Union

Supply Ability : 30 Sets

Delivery Time : four month

Packaging Details : Export waterproof and Seaworthy packing.

Production Name : Automatic HG 165 Round Gas Pipe Forming Machine Tube Mill

Material : HRC,CRC,Galvanised Steel

tube size : 110-273MM

tube thickness : 6-12.7MM

forming type : roll forming

Pipe shape : square,rectangular,LTZ

Roller materoal : Cr12/SKD11

Key words : automatic tube mill

Contact Now

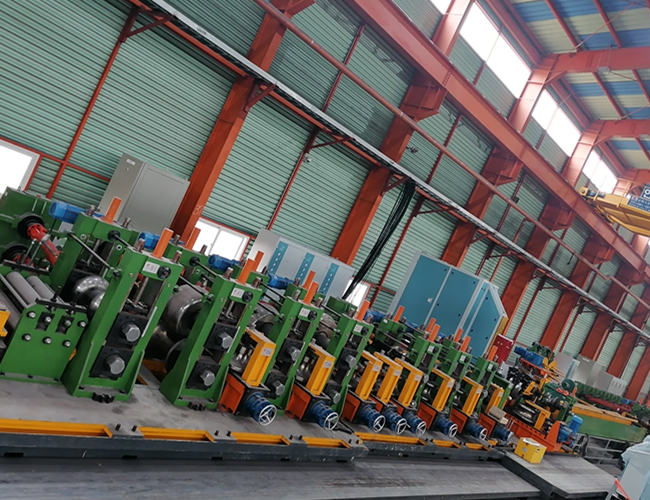

Automatic HG 165 Round Gas Pipe Forming Machine Tube Mill

Product Description:

Automatic HG 165 Round Gas Pipe Forming Machine Tube Mill designed to produce welded steel pipes ,include round pipe , squre pipe and deformed pipe,LTZ pipe.Adopting roll pass design, the production line can manufacture welded steel pipes with good quality machining and high precision assembling.the tube mill machine with different type,include normal tube mill machine, full automatic type,semi-automatic type,high precision tube mill machine can meet customer different require.this carbon steel tube mill machine can product from 76mm to 165mm with thickness from 3.0-8.0mm,also can product square tube and rectangular tube, we has different model tube mill machine,also can design according to customer different require

Main Parameters and Specifications:

Material Specifications

Conforming to the YB189-64 standard
steel material: Q235/Q345
Mechanical properties:σb≤380Mpa,σs≤275MPa
strip width:240-520MM
strip thickness:3.0-8.0MM
I.D of Coils:Φ508mm
O.D of Coils:φ2000mm
Coil Weight:7TON

Quality and Service Warranty

After the machine arrives at the buyer,technical service person will go to buyer factory provide guidance on operation,debugging and maintenance the machine,responsible for technical training for equipment operation and maintenance personnel of the buyer.

whole line warranty one year

Working Process:

strip steel to coil→uncoiler →shear welder→storage material unit →formed,welding,cooling,accurate pipe Dia. size →accurate pipe length size,cutting→inspection →package

Tube Mill Other Model

Model	Diameter Range	Pipe Thickness	Line Speed(m/min)
HG20	8-25.4MM	0.3-1.2MM	120
HG32	10-32MM	1.4-1.5MM	120
HG50	16-76MM	0.7-2.5MM	30-120
HG76	25-76MM	1-4MM	30-100
HG89	32-89MM	1-4.5MM	30-80
HG114	45-114MM	1.5-5.0MM	30-60
HG165	60-165MM	3-7MM	30-50
HG219	114-219MM	4-8MM	20-40
HG273	114-273MM	4-10MM	15-30
HG325	165-325MM	4-10MM	10-30
HG426	165-426MM	4-12.7MM	8-25
HG508	219-508MM	4-16MM	8-20
