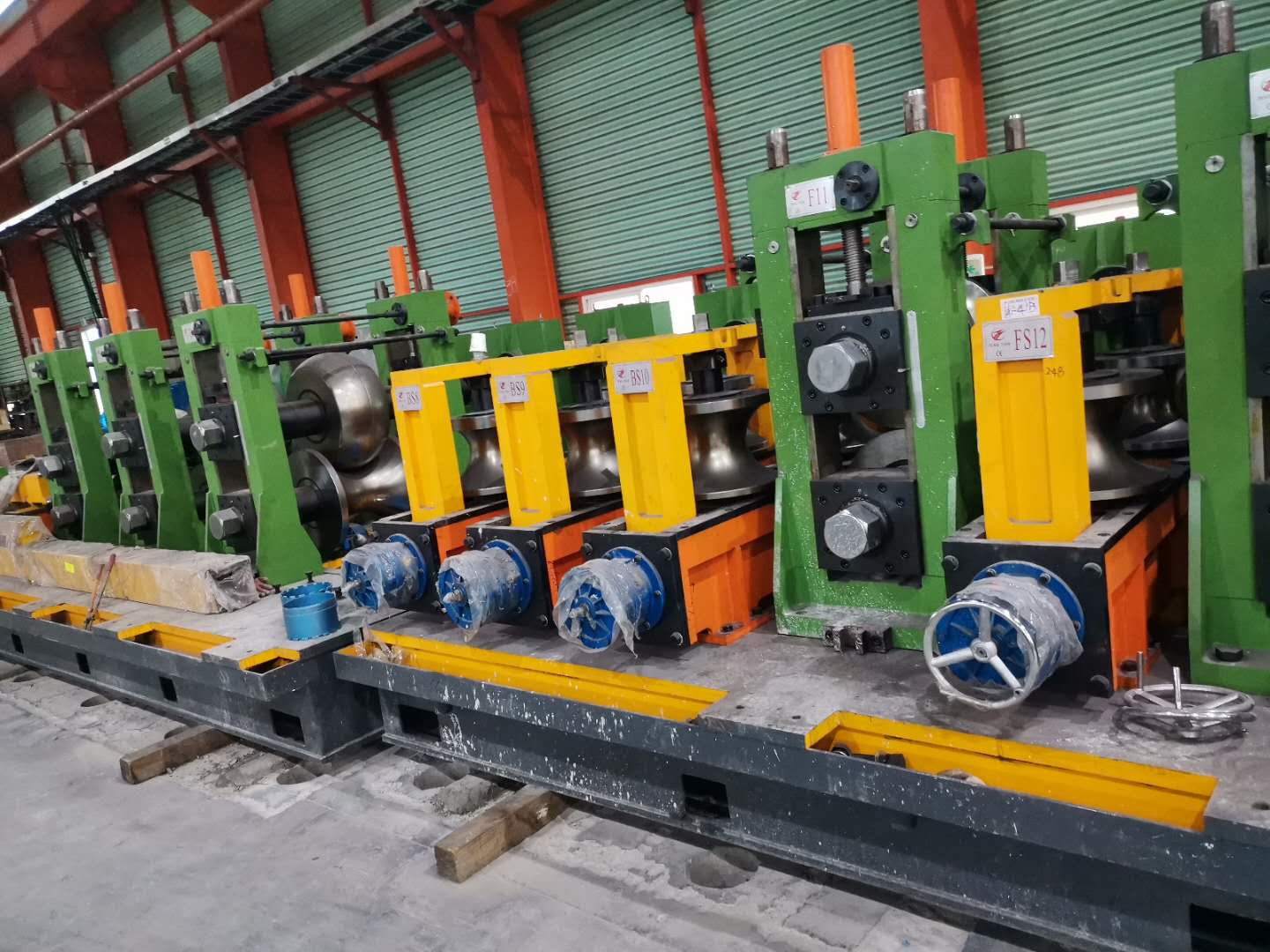

219X6mm High frequency Welded pipe full automatic square pipe tube mill
1.Machine General Introduction
it is designed to produce welded steel pipes ,include round pipe , squre pipe and deformed pipe.
Adopting roll pass design, the production line can manufacture welded steel pipes with good quality machining and high precision assembling.
2.Main Parameters and Specifications:
| (1)Material Specifications: |
| Standard | SPHC,SPHT-2,SS 400,SS440,SS490 |
| Material | Low carbon steel and low alloy constructional steel |
| Mechanical properties | σb≤520Mpa,σs≤365MPa |
| Strip Width | 180-700mm |
| Strip Thickness: | 2.0-5.5mm |
| Inner Diameter of Coils | Φ508mm (buyer should confirm) |
| Outer Diameter of Coils | Φ1300～φ1760mm (buyer should confirm) |
| Coil Weight | ≤15T |
| (2)Pipe Specification |
| Pipe Diameter | 1)round pipe: φ60.3-φ219.1mm, 2)square tube: 50X50-170X170mm, |
| Length | 6m |
| Pipe-cutting Precision | 0-6mm |
| Forming Speed | Max 80m/min (max size and thickness cannot up to max speed) |
| (3)The buyer should self-supply |
| Work shop | 180x6m, H＞5m(crane to ground) |
| Power | Approx.450KW 380V/50Hz/3phases |
| Circulation Cooling Water(whole system) | Flow:20T/h～30 T/h Pool Volume:30m3 |
| Compressed Air (whole system) | Flow:5m3/min Pressure: 5-7kg/ cm2 |
| Cable | All cable outside of my machine, you buy after machine fix location. |
3.Working Process:
strip steel to coil→uncoiler →end straightener→flattener→shear welder→storage material unit →formed,welding,cooling,accurate pipe Dia. size →accurate pipe length size,cutting→inspection →package
4.Quality and After-sale Service Warranty
Equipment arriving at the buyer, the technical services personnel at the scene debugging, maintenance, equipment commissioning, commissioning, operation and maintenance instruction, responsible for technical training for equipment operation and maintenance personnel of the buyer. Used in users abide by the rules, under normal operating equipment, since 12 months from the date of the arrival of the equipment, such as positively impact on the quality to use, parts damage lead to equipment can't normal work, factory will give the repair or replacement free of charge.
