Precision Tube Mill 140mm Square Pipe And Round Pipe Making Machine for Precision Tube Mill

Name: Precision Tube Mill 140mm Square Pipe And Round Pipe Making Machine for Precision Tube Mill
Brand: TENGTIAN
Price: 100000 USD

Precision Tube Mill 140mm Square Pipe And Round Pipe Making Machine for Precision Tube Mill Manufactures

Brand Name : TENGTIAN

Model Number : 140mm

Certification : CE ISO9000 BV

Place of Origin : China

MOQ : 1 set

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 5 set/month

Delivery Time : 60 wording days

Packaging Details : standard export package

Model : Precision Tube Mill 140mm Square Pipe And Round Pipe Making Machine for Precision Tube Mill

Production : Round pipe and square pipe

Feature : erw

Name : Tube mill

Other pipe : square pipe and Rectangular pipe

Max size : 140mm

Thickness : 5mm

Length : 6-12m

Rollers : include

Keyword : Precision Tube Mill

Price : $100000 to $1 million

Contact Now

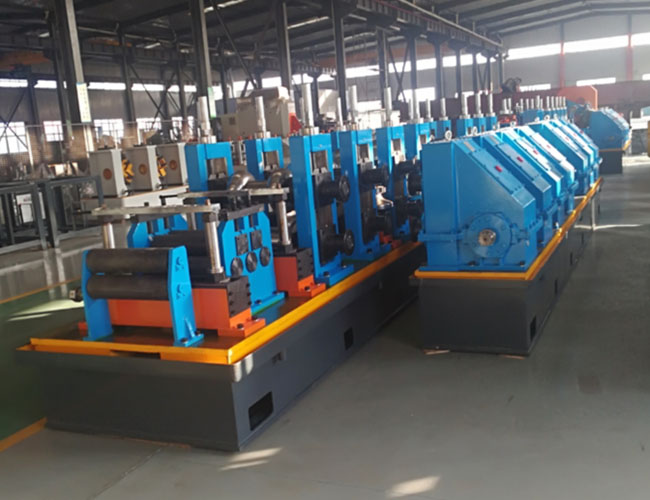

140mm Square Pipe And Round Pipe Making Machine for Precision Tube Mill

Machine General Introduction

It is designed to produce welded steel pipes ,include round pipe , squre pipe and deformed pipe.

Adopting roll pass design, the production line can manufacture welded steel pipes with good quality machining and high precision assembling.

Main Parameters and Specifications

(1)Material Specifications:
Standard	carbon steel, hot galvanized steel
Material	Low carbon steel and low alloy constructional steel
Mechanical properties	σb≤520Mpa,σs≤365MPa
Strip Width	110-200mm
Strip Thickness:	0.9-4mm
Inner Diameter of Coils	Φ508mm
Outer Diameter of Coils	Φ1300～φ2000mm
Coil Weight	≤11T
(2)Pipe Specification
Pipe Diameter	Round pipe:φ38-140mm Square pipe :30x30,40x40,50x50 130x130mm Rec Pipe:40x20,50x30,60x40 Thickness:0.9-4.0mm
Length	6m
Pipe-cutting Precision	0-6mm
Forming Speed	max160m/min for 2mm thickness
(3)The buyer should self-supply
Work shop	95x12m, H＞5m(crane to ground)
Power	Approx.850KW 380V/60Hz/3phases
Circulation Cooling Water(whole system)	Flow:30+30 CBM Pool Volume:40m3
Compressed Air (whole system)	Flow:5m3/min Pressure: 5-7kg/ cm2
Cable	All cable outside of my machine, you buy after machine fix location.

Working Process

strip steel to coil→uncoiler →end straightener→flattener→shear welder→storage material unit →formed,welding,cooling,accurate pipe Dia. size →accurate pipe length size,cutting→inspection →package

Quality and After-sale Service Warranty

Equipment arriving at the buyer, the technical services personnel at the scene debugging, maintenance, equipment commissioning, commissioning, operation and maintenance instruction, responsible for technical training for equipment operation and maintenance personnel of the buyer. Used in users abide by the rules, under normal operating equipment, since 12 months from the date of the arrival of the equipment, such as positively impact on the quality to use, parts damage lead to equipment can't normal work, factory will give the repair or replacement free of charge.
