Plc Control Cnc High Precision Produce Pipe Machine Automatic Tube Mill

  • 1
  • 2

Brand Name : TengTian

Model Number : 512

Certification : CE, ISO9001, BV

Place of Origin : Hebei

MOQ : 1 Set

Price : $100000 to $1 million

Payment Terms : L/C, T/T

Supply Ability : 50 Sets/Year

Delivery Time : 300 work days

Packaging Details : Export waterproof and Seaworthy packing.

Material : Low carbon HRC

Applicable materials : Q235

Warranty : One year

Forming method : MOLD Squeeze

Cutting method : cold saw

Product name : Full Automatic Production Line

speed : 15 m/min

Equipment Specification : customer specified

Forming type : direct forming

Work shop : 90 x 5 m, H＞3m ( crane to ground )

Contact Now

Plc Control Cnc High Precision Produce Pipe Machine Automatic Tube Mill

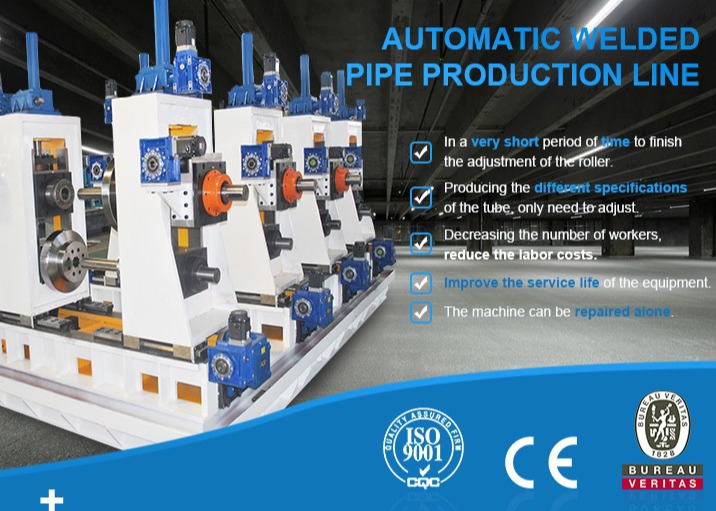

I. Welded pipe making machine consists of the following parts

1. Forming parts: Consist of seven frame of horizontal roll stands, four stands of empty curving stands, four stands of vertical roll rack and one stand of feeding rack
2. Welding parts: consists of welding five roller of extruding roll, two frame of scraping scar rack and one frame of polish rack
3. Sharping parts: consists of four frame of four roller rack
4. Electric control part: controlled by multipoint PLC control

II. Overview

full-automatic ERW steel tube mill/pipe mill line is the first full-automatic pipe making machine in china to meet the requirements of the international market, according to our company LW series unit combined with FF forming technology, developed the automatic square and rectangular tube equipment. The pipe making machine can produce a certain specification of opening cold bend steel, such as U,C section steel etc., width and height of the product can be adjusted infinitely. The steel making machine is used to scale to cut off the steel tubes, the incision level off, smooth, without burr, scale with high precision.

III. ERW tube mill other model

No. Model Size Thickness (mm) Roll Weight(mm) Forming Speed (m/min) Installed Capacity(kw)
1 200 20x20-50x50 1-3 5 20-80 900
2 600 60x60-150x150 2-7 10 20-60 1400
3 800 80x80-200x200 2.5-10 15 20-40 1600
4 1050 100x100-250x250 3-12.7 20 15-30 2600
5 1250 120x120-300x300 3-14 30 10-25 3200
6 1400 150x150-350x350 4-14 30 8-20 3600
7 1600 200x200-400x400 4-16 30 8-15 3900
8 2000 250x250-500x500 4-20 40 8-15 4200

IV. Equipment composition

  • winding and unwinding reels
  • Straightener & leveler
  • Automatic shear and welding
  • Feeder and punching machine
  • Automatic forming and sizing part
  • Cutting machine
  • via rollers
  • Automatic packing and palletizing
