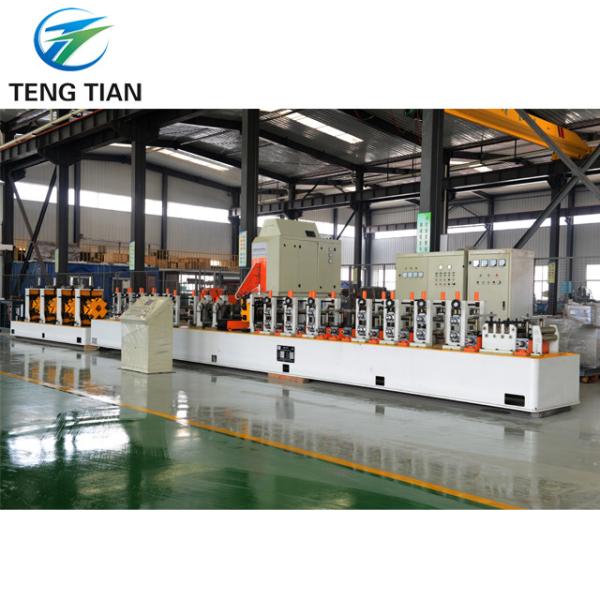

Carbon Steel Industry Pipe Production Line / tube Mill Machines Thick Pipe Production

Name: Carbon Steel Industry Pipe Production Line tube Mill Machines Thick Pipe Production
Brand: tengtian
Price: 100000 USD

Carbon Steel Industry Pipe Production Line / tube Mill Machines Thick Pipe Production Manufactures

Model Number : 50

Certification : BV,CE, ISO9001

Place of Origin : China

MOQ : 1 set

Price : $100000 to $1 million

Payment Terms : L/C, T/T

Supply Ability : 26 of each year

Delivery Time : 90 days

Packaging Details : plastic film winding, wooded case for electric components

Brand Name : tengtian

Product name : carbon steel Industry Pipe production line/tube Mill machines Thick pipe production

Color : white

Pipe Length : 4-8 m

To-length Accuracy : 0-6 mm

Material : low carbon steel

diameter : 15-60 mm

usage : steel construction

keyword : welded pipe mill

Contact Now

carbon steel Industry Pipe production line/tube Mill machines Thick pipe production

Main Equipment and Main Data:

4.1 Uncoiled

Firmer Diameter of Coil ,mm	480～600
Outer Diameter of Coil ,mm	Max 1800
Width of strip ,mm	45～150
Weight of Coil , max ,ton	2
Structure	Double-mackerel
Drum Expansion	Pneumatic
Swivel	Manual

4.2 Semi-auto Shear Welder

Shearing Width ,mm	45～150
Thickness of Strip ,mm	0.6～3.25
Welding Speed ,m/min	0.59～0.9
Moving of Torch	DC Servo Motor
Clanking of Strip During Welding	Manual
Shearing of Strip	Pneumatic
Welding of Strip	CO2 Shield Welder CO2
Adjust of Up and Down	Manual

4.3 Pinch Roll Assembly

Feeding Speed ,max ,m/min	300
Up and Down of Pinch Roll	Pneumatic
Material of Pinch Roll	GCr15
Height Guide Roll Assay	1
Entry Guide Roll Assay	1
Motor, kW	11

4.4 Cage Accumulator

Dimensions, m

8×3.5

4.5 Forming and Sizing Mill

Material	Low carbon steel & low alloy steel σb≤500Mpa σs≤300Mpa
Diameter of Pipe ,mm	16～50
Thickness of Strip ,mm	0.6～3.25(for round pipe) 0.6～2.5(for square and rectangular pipe)
Width of Strip ,mm	45～145
Main Motor Power ,kW	2×55
H.F.Power, kW	200KW
Forming Mode	Roll forming
Stand	Portal style
Forming Speed, m/min	Max80
Entry Guide	1
No. Of forming stands	- horizontal 6 -vertical 6
No. Of sizing stands	-horizontal 6 - Vertical 6
Seam Guide Roll Stand	1
Squeeze Roll Stand	1
Bead Scraper	2
Cooling Zone	1
Driving Roll Shaft Diameter, mm	40Cr, Φ55
Side Roll Shaft Diameter, mm	40Cr, Φ35
Turks Head	4-roll style. 2
Reduction Gear Box	Bevel Gear Box
Driving System	BS Euro herm

4.6 Flying Saw

Outer Diameter of Pipe, max, mm	50
Wall Thickness, max, mm	3.5
Cut-to-length, m	4～8
Cutting Motor Power, kW	AC 15
Traveling Motor Power, kW	DC 15
Cutting Accuracy, mm	0～6
Control	Computer

4.7 Conveyer

Motor, kW
