Brand Name : Tengtian
Model Number : HG50
Certification : CE ISO
Place of Origin : HEBEI,CHINA
MOQ : 1 set
Price : $100000 to $1 million
Payment Terms : L/C, T/T, Western Union
Supply Ability : 100 set per year
Delivery Time : two months
Packaging Details : packed in seaworthy material
Product Name : ERW Cold Cut Pipe Mill Machine For Carbon Steel Round Pipe
special require : can design according to the customer
pipe diameter : 10-50mm
product speed : Max 90m/min
pipe thickness : 1.0-3.0mm
color : blue
Welding type : ERW
Key Word : Pipe Mill Machine For Carbon Steel Round Pipe
Product Name
ERW Cold Cut Pipe Mill Machine For Carbon Steel Round Pipe
Features
ERW Cold Cut Pipe Mill Machine For Carbon Steel Round Pipe is the steel pipe macking machine with advanced technical characteristics of the pipe products. The unit uses the world’s advanced W,FFX,FF Forming method, and the choice of the German Roll forming design.
Pipe Mill Machine List
No. | Model | Pipe Size | Thickness | Speed(m/min) | Capacity(KW) | HF(KW) | Area(LxW ) |
1 | HG20 | ø8 - ø20 mm | 0.3 - 1.5 mm | 30 - 150 | 210 | 100 | 40*12 |
2 | HG32 | ø10 - ø32 mm | 0.4 - 2.0 mm | 30 - 150 | 300 | 150 | 40*12 |
3 | HG50 | ø16 - ø50 mm | 0.7 -2.5 mm | 30 - 150 | 410 | 200 | 60*12 |
4 | HG60 | ø22 - ø60 mm | 0.9 - 3.0 mm | 30 - 150 | 410 | 200 | 60*12 |
5 | HG76 | Ø25 - ø76 mm | 1 - 4 mm | 30 - 120 | 580 | 300 | 80*16 |
6 | HG89 | Ø32 - ø89 mm | 1 - 4.5 mm | 30 - 100 | 660 | 300 | 100*16 |
7 | HG114 | Ø45 - ø114 mm | 1.5 -5 mm | 30 - 80 | 920 | 400 | 100*16 |
8 | HG140 | Ø50 - ø140 mm | 1.5 - 5.5 mm | 30 - 80 | 920 | 400 | 100*16 |
9 | HG165 | Ø60 - ø165 mm | 2 - 6 mm | 30 - 60 | 1100 | 500 | 100*16 |
10 | HG219 | Ø114 - ø219mm | 3 - 8 mm | 20 - 45 | 1400 | 600 | 150*16 |
11 | HG273 | Ø114 - ø273mm | 4 - 12 mm | 15 - 30 | 2100 | 800 | 160*18 |
12 | HG325 | Ø165 - ø325 mm | 4 - 14 mm | 10 - 30 | 2500 | 1000 | 200*24 |
13 | HG426 | Ø165 - ø426 mm | 4 - 16 mm | 8 - 25 | 2900 | 1200 | 250*24 |
14 | HG508 | Ø219 - ø508 mm | 5 - 18 mm | 5 - 18 | 3400 | 1600 | 300*24 |
15 | HG610 | Ø355 - ø610 mm | 5 - 18 mm | 5 - 18 | 3700 | 1600 | 300*24 |
16 | HG760 | Ø426 - ø760 mm | 5 - 20 mm | 5 - 20 | 4300 | 1800 | 300*24 |

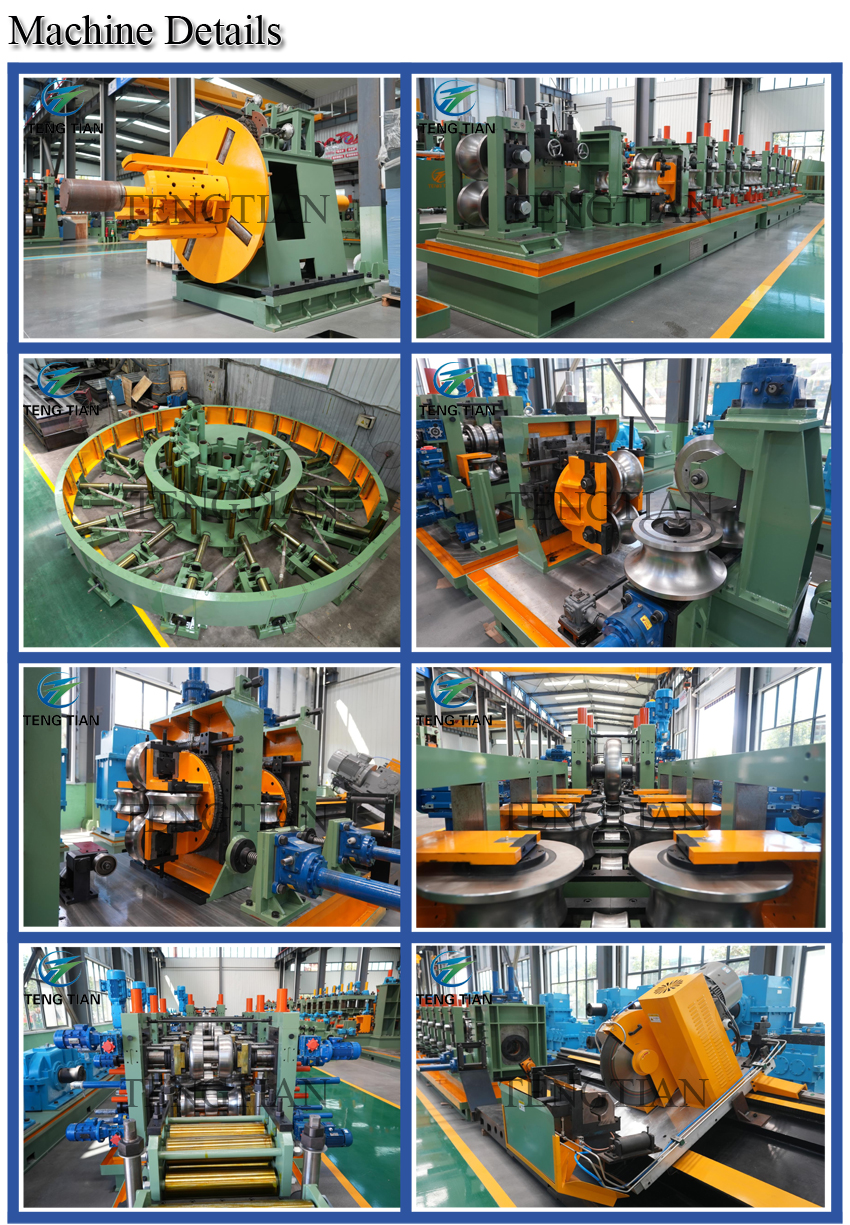

Reference Picture
FAQ:
Q1: Are you manufacturer or trading company?
A1: we are manufactuer , more than 20 years experience.
Q2: What is the max size of pipe you have even produce?
A2: Max φ630mm
Q3:Can I visit your customer machine line?
A3: Yes, but I need to get agreement from my customer firslty.
Q4: what is your machine advantages?
A4:Contain Full automatic, Direct forming square, Share rollers. Fast change system
Q5:How I can get the quotation?
A5:Please send your requires of pipe size , thickness to us.
![]() |

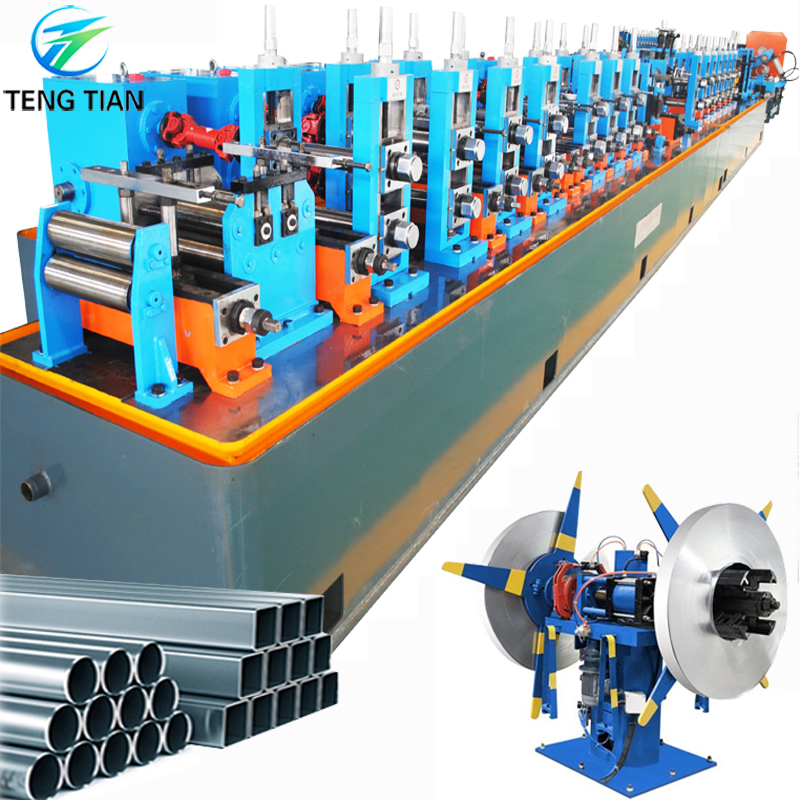

ERW Cold Cut Pipe Mill Machine For Carbon Steel Round Pipe Images |
