Brand Name : Tengtian
Model Number : HG76
Certification : CE ISO
Place of Origin : HEBEI,CHINA
MOQ : 1 set
Price : $100000 to $1 million
Payment Terms : L/C, T/T, Western Union
Supply Ability : 200 set per year
Delivery Time : one month
Packaging Details : packed in seaworthy material
product naHigh Precisionme : High Precision Carbon Steel Pipe Mill Machine 300KW Solid State Welder
material : Carbon Steel
product speed : Max 90m/min
accuracy rating : High Precision
pipe diameter : 76mm
pipe thickness : 1-4mm
special require : Pipe Mill Machine High Precision
Key Word : Pipe Mill Machine 300KW Solid State Welder
The cold cutting saw is able to cut tubes with speed up to 120m/min.An automatic control system allows to optimize blade position according to the tube diameter and thickness,setting the speed of feeding and ratation of the blades,this system is able to increase the quality of the cut surface.no burr.in the work process eliminating mechanical clearance,reduce the influence of cold cutting saw ablade,saw blade small wastage,reduce the production cost,inprove the machine service life.
Product Process:
material(steel coil)→uncoiler→shear and welder→horizontal(or cage) accumulator→forming mill→
HF soild welder→sizing mill→rounghly straightening(turkey head)→Cold cut pipe saw→run out table
ERW Tube Mill Other Model
Model | Diameter Range | Pipe Thickness | Line Speed(m/min) |
HG20 | 8-25.4MM | 0.3-1.2MM | 120 |
HG32 | 10-32MM | 1.4-1.5MM | 120 |
HG50 | 16-76MM | 0.7-2.5MM | 30-120 |
HG76 | 25-76MM | 1-4MM | 30-100 |
HG89 | 32-89MM | 1-4.5MM | 30-80 |
HG114 | 45-114MM | 1.5-5.0MM | 30-60 |
HG165 | 60-165MM | 3-7MM | 30-50 |
HG219 | 114-219MM | 4-8MM | 20-40 |
HG273 | 114-273MM | 4-10MM | 15-30 |
HG325 | 165-325MM | 4-10MM | 10-30 |
HG426 | 165-426MM | 4-12.7MM | 8-25 |
HG508 | 219-508MM | 4-16MM | 8-20 |
This model just for you reference,the product range and thickness is adjustable,we have ourselves engineer team,can design the machine according to the customer special require.
FAQ:
Q1: Are you manufacturer or trading company?
A1: we are manufactuer , more than 20 years experience.
Q2: What is the max size of pipe you have even produce?
A2: Max φ630mm
Q3:Can I visit your customer machine line?
A3: Yes, but I need to get agreement from my customer firslty.
Q4: what is your machine advantages?
A4:Contain Full automatic, Direct forming square, Share rollers. Fast change system
Q5:How I can get the quotation?
A5:Please send your requires of pipe size , thickness to us.
![]() |

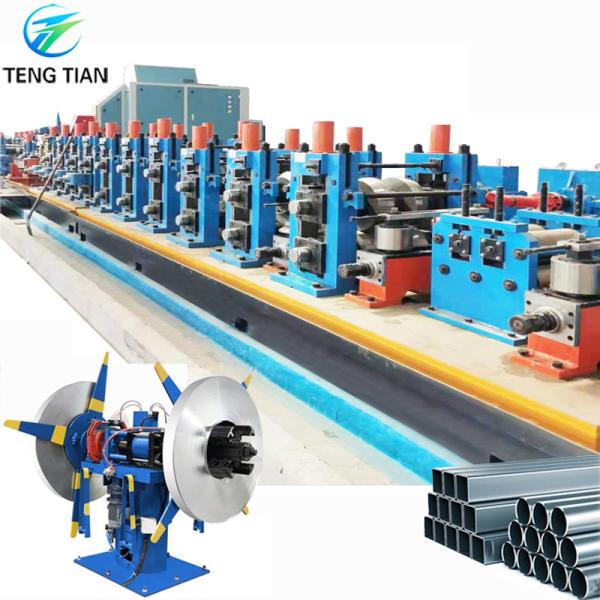

High Precision Carbon Steel Pipe Mill Machine 300KW Solid State Welder Images |
